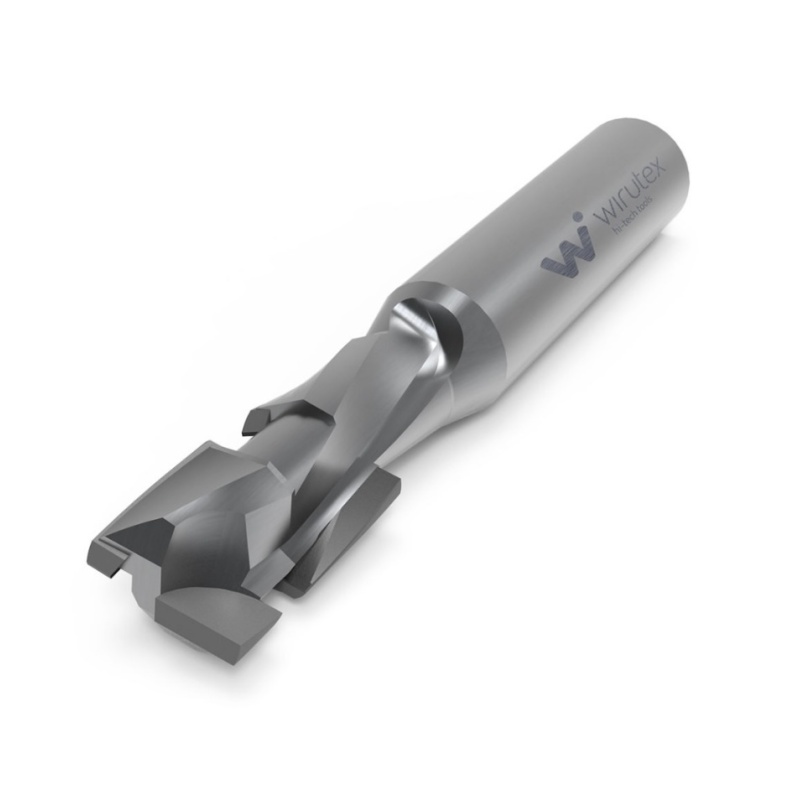

Eco-Line Mini D10 S12mm PCD router cutter
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
Design
- PCD tips
- HM tungsten carbide plunging tip
- Positive and negative shear angle
- Sharpening area: 1.0 mm
- Feed speed: up to 15 m/min
- Max. rpm: 18,000 – 24,000
- Minimum material thickness 13 mm
Data sheet
- Diameter (D)
- 10mm
- Shank
- 12mm
- Cutting length/height:
- 27mm
- Nmax
- 18000 - 24000
- Cutters
- 1+1
- Radius / Angle
- Axial 10°
- Total Length
- 75mm
- Direction of rotation
- Clockwise
- Type of knives / cutters
- PCD (Polycrystalline Diamond)
Description
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
€67.50
€54.00
(tax excl.)
Save 20%
