PCD router cutter D12 L27 S12mm Eco-Line Mini Z1+1 with HWM body

Reference ES0219
Brand Wirutex
MPN ES0219

For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.

PCD router cutters with HWM body which provides greater resistance to vibrations and makes them less prone to breakage than the Eco-line Mini Z1+1.

Design

  • PCD tips
  • Cutting edge head in HWM
  • Positive and negative shear angle
  • Sharpening area: 1.0 mm
  • Feed speed: up to 20 m/min
  • Max. rpm: 18,000 – 24,000
  • Minimum material thickness 13 mm

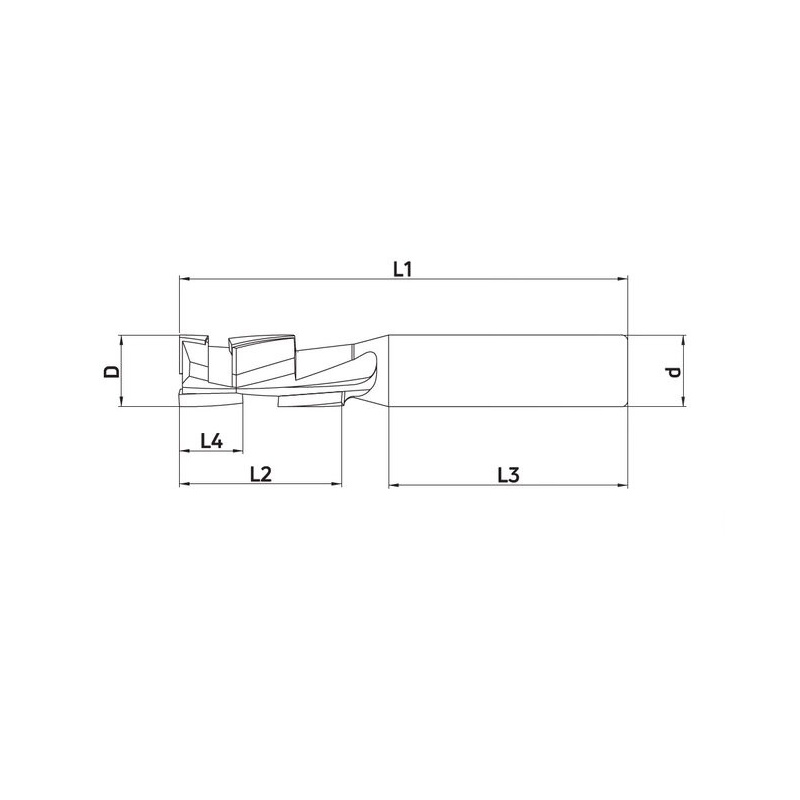

Data sheet

Diameter (D)
12mm
Shank
12mm
Cutting length/height:
27mm
Nmax
18000 - 24000
Cutters
1+1
Total Length
80mm
€273.00
€218.40 (tax excl.)
Save 20%
checkOut of stock, please inquire about delivery time
