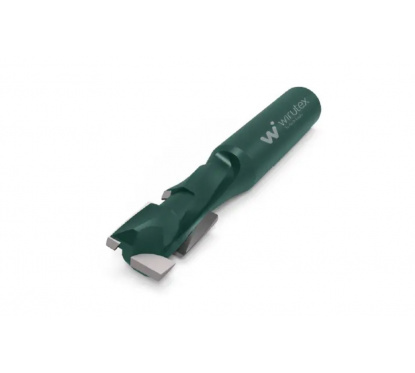

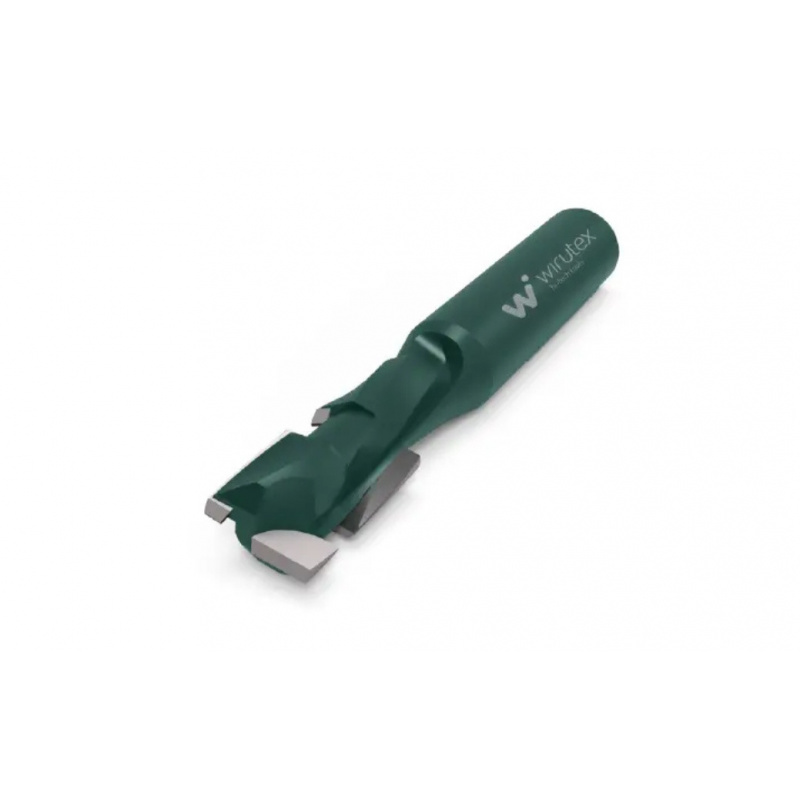

Eco-Line Mini D20 L27 S20mm PCD router cutter

Reference P03930
Brand Wirutex
MPN P03930

For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.

Design

  • PCD tips
  • HM tungsten carbide plunging tip
  • Positive and negative shear angle
  • Sharpening area: 1.0 mm
  • Feed speed: up to 15 m/min
  • Max. rpm: 18,000 – 24,000
  • Minimum material thickness 13 mm

Data sheet

Diameter (D)
20 mm
Shank
20 mm
Cutting length/height:
27mm
Nmax
18000 - 24000
Cutters
1+1
Radius / Angle
Axial 25°
Total Length
85mm
Type of knives / cutters
PCD (Polycrystalline Diamond)

Description

For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.

€83.00
€66.40 (tax excl.)
Save 20%
checkOut of stock, please inquire about delivery time
