Diamond router bits - PCD

  • Much longer tool life then hard-metal tools while processing abrasive materials.
  • Suitable for machining various materials including hardwood, glued-laminated wood, plastics, reinforced plastics, Trespa and Corian.

Note: PCD is fragile, always keep in packaging when not in use.

Shop by Category

Active filters

PCD Diamond straight router bit D16 B26 S16mm | JVL Tools
  • -20%

Eco-line

PCD Diamond straight router bit D16 B26 S16mm

Ref: 900.16.26.16
PCD Diamond straight router bit bottom cutting
Suitable for milling wood. MDF. chipboard. plastics. veneer. melamine and hi-macs
€72.52 -20% €58.02
8 in stock
Eco-Line Mini D20 L27 S20mm PCD router cutter | Wirutex
  • -20%

Eco-line

Eco-Line Mini D20 L27 S20mm PCD router cutter

Ref: P03930
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
Design

PCD tips
HM tungsten carbide plunging tip
Positive and negative shear angle
Sharpening area: 1.0 mm
Feed speed: up to 15 m/min
Max. rpm: 18,000 – 24,000
Minimum material thickness 13 mm
€83.00 -20% €66.40
Out of stock, please inquire about delivery time
Eco-Line Mini D18 L27 S20mm PCD router cutter | Wirutex
  • -20%

Eco-line

Eco-Line Mini D18 L27 S20mm PCD router cutter

Ref: P03870
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
Design

PCD tips
HM tungsten carbide plunging tip
Positive and negative shear angle
Sharpening area: 1.0 mm
Feed speed: up to 15 m/min
Max. rpm: 18,000 – 24,000
Minimum material thickness 13 mm
€83.00 -20% €66.40
Out of stock, please inquire about delivery time
Eco-Line Mini D16 L27 S16mm PCD router cutter | Wirutex
  • -20%

Eco-line

Eco-Line Mini D16 L27 S16mm PCD router cutter

Ref: P03810
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
Design

PCD tips
HM tungsten carbide plunging tip
Positive and negative shear angle
Sharpening area: 1.0 mm
Feed speed: up to 15 m/min
Max. rpm: 18,000 – 24,000
Minimum material thickness 13 mm
€83.00 -20% €66.40
Out of stock, please inquire about delivery time
PCD Diamond straight router bit 14mm L26 S16mm

Eco-line

PCD Diamond straight router bit 14mm L26 S16mm

Ref: 900.14.26.16
PCD Diamond straight router bit bottom cutting
Suitable for milling wood. MDF. chipboard. plastics. veneer. melamine and hi-macs
€72.52
Out of stock, please inquire about delivery time
PCD Diamond straight router bit 14mm L35 S16mm
  • -20%
  • New

Eco-line

PCD Diamond straight router bit 14mm L35 S16mm

Ref: 900.14.35.16
PKD diamond groove cutter, bottom cutting. Suitable for processing wood, bonded panels (MDF, chipboard), Trespa, concrete plywood, plexiglass, melamine, and various types of (reinforced) plastics.
€96.68 -20% €77.34
Out of stock, please inquire about delivery time
PCD Diamond straight router bit 12mm L35 S12mm | JVL Tools
  • -20%

Eco-line

PCD Diamond straight router bit 12mm L35 S12mm

Ref: 900.12.35.12
PKD diamond groove cutter, bottom cutting. Suitable for processing wood, bonded panels (MDF, chipboard), Trespa, concrete plywood, plexiglass, melamine, and various types of (reinforced) plastics.
€96.68 -20% €77.34
2 in stock
PCD Diamond straight router bit 16mm L45 S25mm
  • -20%
  • New

Eco-line

PCD Diamond straight router bit 16mm L45 S25mm

Ref: 900.16.45.25
PKD diamond groove cutter, bottom cutting. Suitable for processing wood, bonded panels (MDF, chipboard), Trespa, concrete plywood, plexiglass, melamine, and various types of (reinforced) plastics.
€120.84 -20% €96.67
Out of stock, please inquire about delivery time
PCD Diamond straight router bit 16mm L45 S16mm
  • -20%
  • New

Eco-line

PCD Diamond straight router bit 16mm L45 S16mm

Ref: 900.16.45.16
PKD diamond groove cutter, bottom cutting. Suitable for processing wood, bonded panels (MDF, chipboard), Trespa, concrete plywood, plexiglass, melamine, and various types of (reinforced) plastics.
€120.84 -20% €96.67
Out of stock, please inquire about delivery time

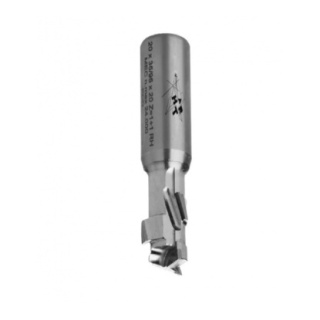

PCD Diamond straight router bit 14mm L45 S16mm
  • -20%
  • New

Eco-line

PCD Diamond straight router bit 14mm L45 S16mm

Ref: 900.14.45.16
PKD diamond groove cutter, bottom cutting. Suitable for processing wood, bonded panels (MDF, chipboard), Trespa, concrete plywood, plexiglass, melamine, and various types of (reinforced) plastics.
€120.84 -20% €96.67
Out of stock, please inquire about delivery time
PCD router cutter D8 L27 S8mm Eco-Line Mini Z1+1 with HWM body | Wirutex
  • -20%

Eco-line

PCD router cutter D8 L27 S8mm Eco-Line Mini Z1+1 with HWM body

Ref: ES0203
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
PCD router cutters with HWM body which provides greater resistance to vibrations and makes them less prone to breakage than the Eco-line Mini Z1+1.
Design

PCD tips
Cutting edge head in HWM
Positive and negative shear angle
Sharpening area: 1.0 mm
Feed speed: up to 20 m/min
Max. rpm: 18,000 – 24,000
Minimum material thickness 13 mm
€230.00 -20% €184.00
Out of stock, please inquire about delivery time
PCD router cutter D10 L27 S10mm Eco-Line Mini Z1+1 with HWM body | Wirutex
  • -20%

Eco-line

PCD router cutter D10 L27 S10mm Eco-Line Mini Z1+1 with HWM body

Ref: ES0211
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
PCD router cutters with HWM body which provides greater resistance to vibrations and makes them less prone to breakage than the Eco-line Mini Z1+1.
Design

PCD tips
Cutting edge head in HWM
Positive and negative shear angle
Sharpening area: 1.0 mm
Feed speed: up to 20 m/min
Max. rpm: 18,000 – 24,000
Minimum material thickness 13 mm
€250.00 -20% €200.00
Out of stock, please inquire about delivery time
PCD router cutter D12 L27 S12mm Eco-Line Mini Z1+1 with HWM body | Wirutex
  • -20%

Eco-line

PCD router cutter D12 L27 S12mm Eco-Line Mini Z1+1 with HWM body

Ref: ES0219
For contouring, boring and sizing panels in chipboard and MDF, unpolished or faced.
PCD router cutters with HWM body which provides greater resistance to vibrations and makes them less prone to breakage than the Eco-line Mini Z1+1.
Design

PCD tips
Cutting edge head in HWM
Positive and negative shear angle
Sharpening area: 1.0 mm
Feed speed: up to 20 m/min
Max. rpm: 18,000 – 24,000
Minimum material thickness 13 mm
€273.00 -20% €218.40
Out of stock, please inquire about delivery time
Wirutex diamond groove cutter Z1 D10 shank 10mm
  • -20%
  • New

Straight bits

Wirutex diamond groove cutter Z1 D10 shank 10mm

Ref: S14467
Diameter 10mm, Shank 10mm
Suitable for CNC machining centers.
For finger joints and rebates.
Machining on chipboard and MDF with and without melamine coatings, Corian, HPL, and laminated materials.
PCD diamond tip.
Cutter body made of solid tungsten carbide.
Grinding surface: 3.0 mm
Feed speed: 5 to 10 m/min
Max. speed: 18,000 - 24,000
€344.00 -20% €275.20
Expected delivery time 1 week
Wirutex diamond groove cutter Z1 D12 shank 12mm
  • -20%
  • New

Straight bits

Wirutex diamond groove cutter Z1 D12 shank 12mm

Ref: S14469
Diameter 12mm, Shank 12mm
Suitable for CNC machining centers.
For finger joints and rebates.
Machining on chipboard and MDF with and without melamine coatings, Corian, HPL, and laminated materials.
PCD diamond tip.
Cutter body made of solid tungsten carbide.
Grinding surface: 3.0 mm
Feed speed: 5 to 10 m/min
Max. speed: 18,000 - 24,000
€460.00 -20% €368.00
Expected delivery time 1 week
Nesting ECO Z3+1 12x26 S12mm | Wirutex
  • -20%

Nesting

Nesting ECO Z3+1 12x26 S12mm

Ref: S13490

For CNC machines
For Cabinet nesting
Machinig operations on MDF and melamine
DP plunging Tip
Sharpening area 2.0 mm
heavy metal body
Feed speed up to 20m/min
€492.00 -20% €393.60
Out of stock, please inquire about delivery time
Nesting ECO Z3+1 14x30 S12mm | Wirutex
  • -20%

Nesting

Nesting ECO Z3+1 14x30 S12mm

Ref: S13456

For CNC machines
For Cabinet nesting
Machinig operations on MDF and melamine
DP plunging Tip
Sharpening area 2.0 mm
heavy metal body
Feed speed up to 20m/min
€676.00 -20% €540.80
Out of stock, please inquire about delivery time
Wirutex diamond groove cutter Z1 D16 shank 16mm
  • -20%
  • New

Straight bits

Wirutex diamond groove cutter Z1 D16 shank 16mm

Ref: S14471
Diameter 16mm, Shank 16mm
Suitable for CNC machining centers.
For finger joints and rebates.
Machining on chipboard and MDF with and without melamine coatings, Corian, HPL, and laminated materials.
PCD diamond tip.
Cutter body made of solid tungsten carbide.
Grinding surface: 3.0 mm
Feed speed: 5 to 10 m/min
Max. speed: 18,000 - 24,000
€680.00 -20% €544.00
Expected delivery time 1 week
